Camera calibration

Overview

Raiden uses ChArUco boards to calibrate cameras. Two types of calibration are supported:

• Hand-eye calibration (wrist cameras) - determines the rigid transform from the camera frame to the gripper frame (T_camera→gripper).
• Scene camera calibration - determines the transform from the camera frame to the robot base frame (T_camera→base).

Step 1 - Print a ChArUco board

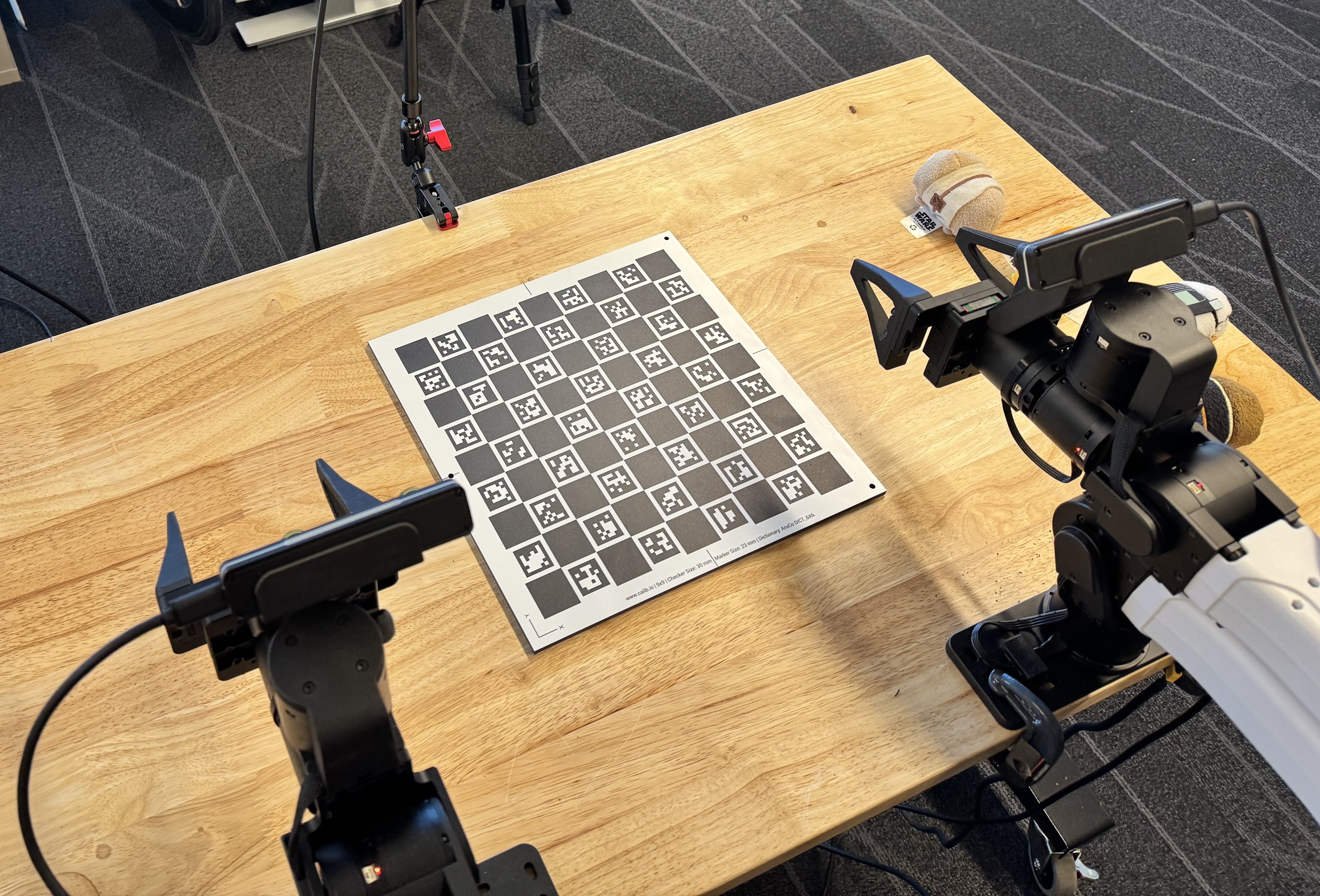

Print a ChArUco board and mount it rigidly (e.g. on a flat aluminium plate). For best results, consider an industry-grade printed target from calib.io. These are manufactured on dimensionally stable material and give lower reprojection errors than paper prints.

Step 2 - Record calibration poses

Move the robot to a series of diverse poses while the board is visible. At least 5 poses are required; 7–10 is recommended for good coverage.

rd record_calibration_poses

A live Rerun viewer opens automatically in your browser so you can verify that the board is visible from all cameras before recording each pose. The URL and an SSH tunnel command are printed to the terminal:

Rerun viewer:    http://localhost:9877?url=...
SSH tunnel:      ssh -L 9877:localhost:9877 -L 9878:localhost:9878 <host>

Images are refreshed at 1 Hz. The right wrist camera image is automatically rotated 180° to correct for its upside-down mounting.

Keyboard controls:

• R - record current pose
• D - delete last recorded pose
• L - list all recorded poses
• Q - quit (saves if enough poses recorded)

Poses are saved to ~/.config/raiden/calibration_poses.json.

Step 3 - Run calibration

rd calibrate

If your board has different dimensions or a different dictionary, pass them here:

rd calibrate \
    --squares-x 9 \
    --squares-y 9 \
    --square-length 0.03 \
    --marker-length 0.023 \
    --dictionary DICT_6X6_250

Parameter	Default	Description
--squares-x	9	Number of squares along X
--squares-y	9	Number of squares along Y
--square-length	0.03	Checker square side length in metres
--marker-length	0.023	ArUco marker side length in metres
--dictionary	DICT_6X6_250	ArUco dictionary

Raiden reads ~/.config/raiden/camera.json and calibrates every camera whose role is "left_wrist", "right_wrist", or "scene" automatically - no explicit camera IDs are required.

The runner will:

1. Load the recorded poses from ~/.config/raiden/calibration_poses.json
2. Move the robot to each pose
3. Capture frames from all target cameras
4. Detect the ChArUco board in each frame
5. Run hand-eye / scene calibration
6. Save results to ~/.config/raiden/calibration_results.json

Output

~/.config/raiden/calibration_results.json contains one entry per camera:

{
  "version": "1.0",
  "timestamp": "2026-03-12T22:00:00.000000",
  "coordinate_frame": "left_arm_base",
  "cameras": {
    "left_wrist_camera": {
      "type": "hand_eye",
      "serial_number": 16522755,
      "intrinsics": {
        "camera_matrix": [[526.7, 0, 319.4], [0, 526.7, 178.5], [0, 0, 1]],
        "distortion_coeffs": [-0.041, 0.013, 0.0, 0.0, 0.0],
        "image_size": [672, 376],
        "source": "zed_sdk_factory_calibration"
      },
      "num_poses_used": 8,
      "hand_eye_calibration": {
        "success": true,
        "rotation_matrix": [[0.999, -0.012, 0.008], [0.012, 0.999, -0.003], [-0.008, 0.003, 0.999]],
        "translation_vector": [0.012, -0.034, 0.061],
        "rotation_vector": [-0.003, 0.008, 0.012],
        "method": "Tsai"
      }
    },
    "scene_camera": {
      "type": "scene",
      "serial_number": 37038161,
      "intrinsics": {
        "camera_matrix": [[700.1, 0, 659.8], [0, 700.1, 371.2], [0, 0, 1]],
        "distortion_coeffs": [-0.052, 0.021, 0.0, 0.0, 0.0],
        "image_size": [1280, 720],
        "source": "zed_sdk_factory_calibration"
      },
      "num_poses_used": 8
    }
  },
  "bimanual_transform": {
    "right_base_to_left_base": [[1, 0, 0, -0.612], [0, 1, 0, 0.0], [0, 0, 1, 0.0], [0, 0, 0, 1]],
    "computed_from_calibration": true,
    "description": "Transform from right arm base frame to left arm base frame"
  }
}
